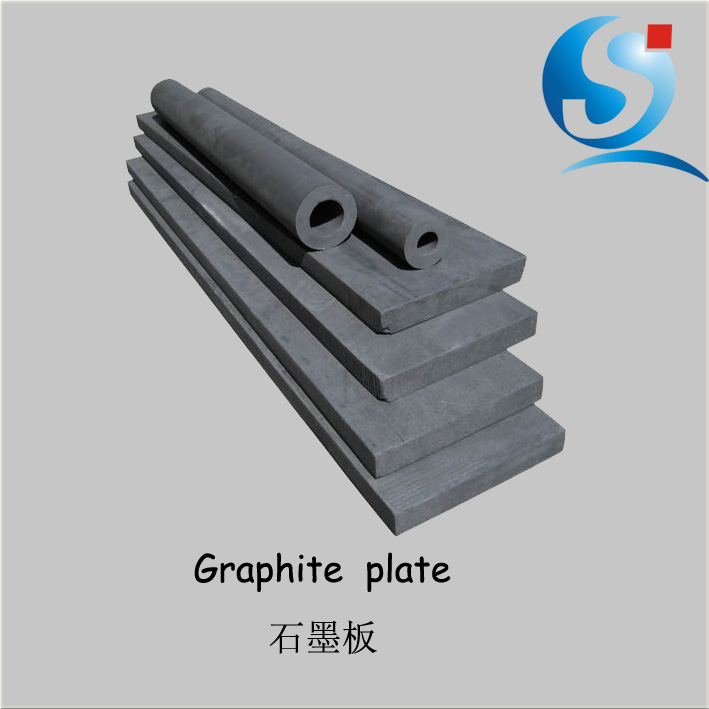

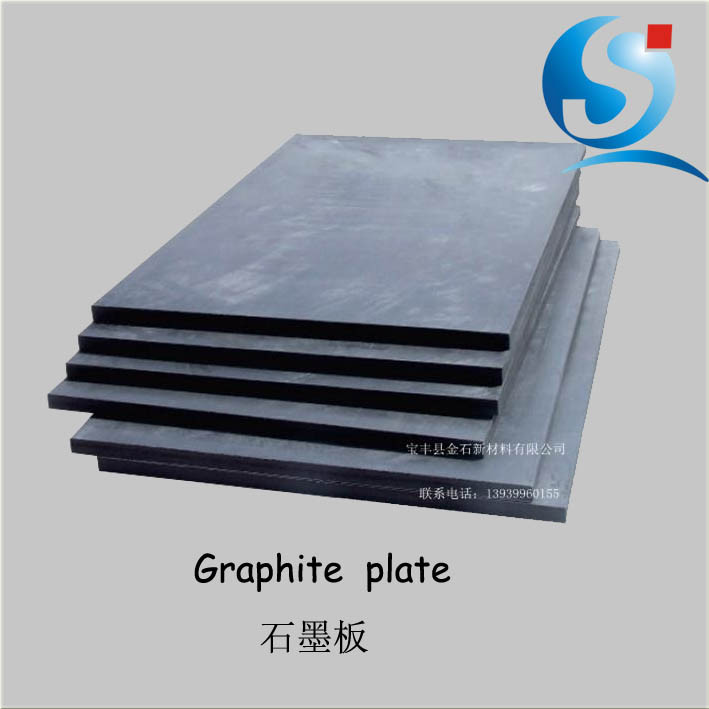

Graphite anode plate/graphite cathode plate/graphite bipolar plate
carbon
graphite plate is a new type of material.Graphite block is usde in
precision tool,aerospace industry ,war industy ,chemical industry.ect
.There are Extruded
Graphite,Molded Graphite,Isostatic Graphite,Vibration Graphite,High
density and high Flexural Strength graphite material . (Die molded
graphite),High pure extruded graphite,Special carburizing treatment
graphite material.
Advantages of Graphite anode plate/graphite cathode plate/graphite bipolar plate :
1,high strength,high hardness
2,good heat-resistance, low porosity
3,anti-abrasion,anti-scour
4,high purity graphite
Graphite
plates have good resistance to thermal shock, oxidation and corrosion,
and have suitable resistivity and homogenous structure. And it offers
excellent sealing capabilities under extreme conditions with a longer
life and less maintenance
Application of Graphite anode plate/graphite cathode plate/graphite bipolar plate :
1, photovoltaic industry
2,Precision casting industry ,coper continuous parts
3, EDM graphite
4, crucible for melting rare metals
5,machine analysis container
6, alloy industry, sintering molds,pumps
|
TECHNICAL SHEET:(COMMON MODELS) |
|
Technical Specification |
JS-3 |
JS-4 |
JS-5 |
JS-6 |
|
Bulk Density(g/cm3) |
≥1.72 |
≥1.78 |
≥1.85 |
≥1.9 |
|
Ash Content(PPM) |
≤ 1000 |
≤1000 |
≤1000 |
≤1000 |
|
Shore Hardness |
≥40 |
≥40 |
≥45 |
≥50 |
|
Specific Resistance (μ.Ω.m) |
≤12 |
≤12 |
≤10 |
≤8 |
|
Flexural Strength (MPa) |
≥30 |
≥35 |
≥40 |
≥45 |
|
Compressive Strength (MPa) |
≥50 |
≥60 |
≥70 |
≥85 |
|
Max. Grain Size(μm) |
≤43 |
≤43 |
≤43 |
≤43 |
|
Coefficient of Thermal Expansion Mm/°C |
≤4.5*10-6 |
≤4.5*10-6 |
≤4.4*10-6 |
≤4.4*10-6 |
Size: As per your requirement, accept customized, the thickness can reach to 3mm
We also can supply other types of graphtie block, like moulded graphite block, brick, and all of the machined graphite parts.
