Quick Details

Place of Origin: Henan, China (Mainland) Brand Name: BFMC Model Number: JS-rod Application: Electrodes, anodes, cathodes, resistors, whisking rods Dimensions: 10*360mm Chemical Composition: Carbon Density: 1.78g/cm3 Electrical Resistivity: 8 uom Bending strength: 30-35mpa Compressive strength: 60-70mpa Ash content: 7-10PPM Material: Extruded graphite purity: 99.99% ash content: 0.0008% usage: spectral analysis

Packaging & Delivery

Packaging Details: In wooden cases or veneer cases

Delivery Detail: Within 15-30 working days after receiving deposit

Product Description

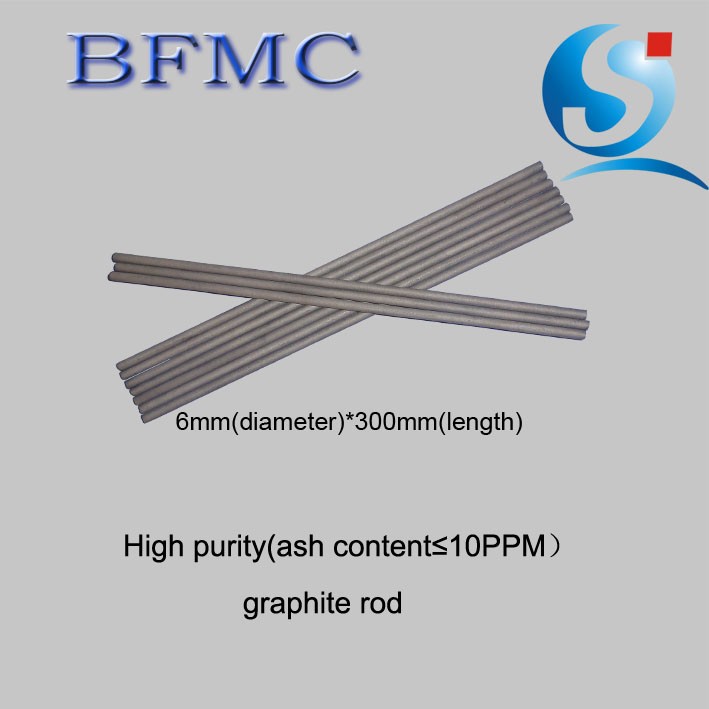

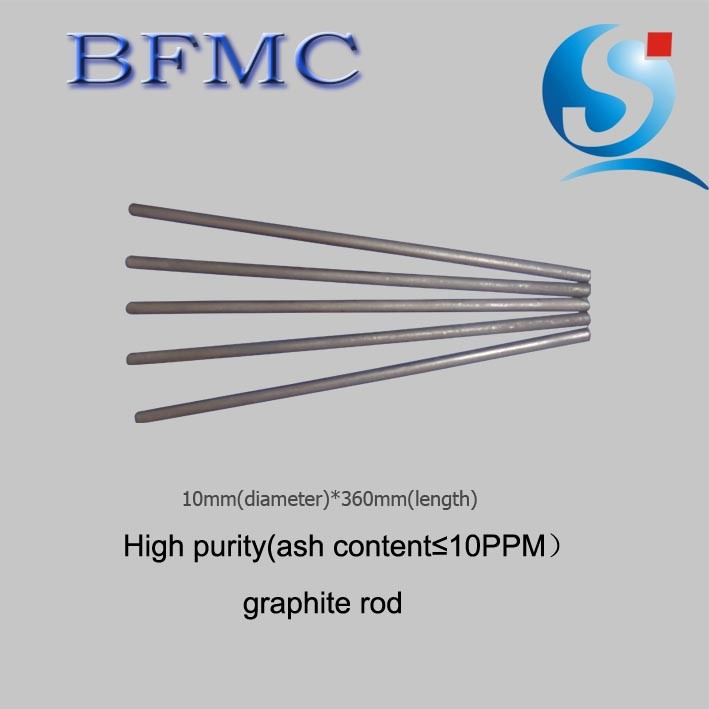

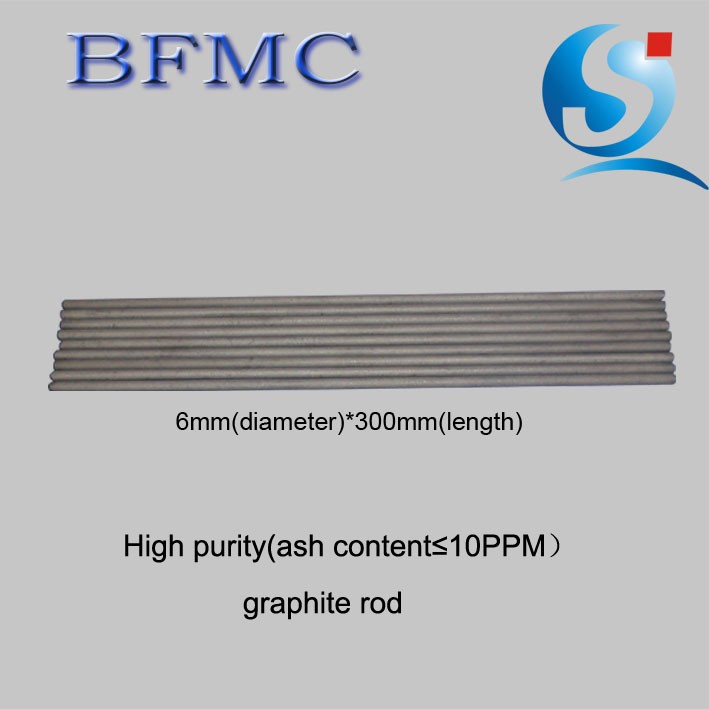

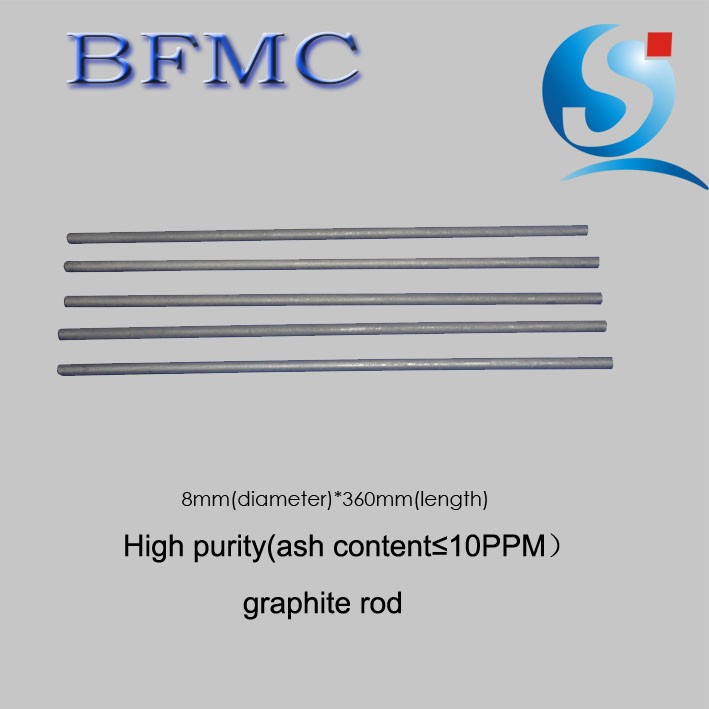

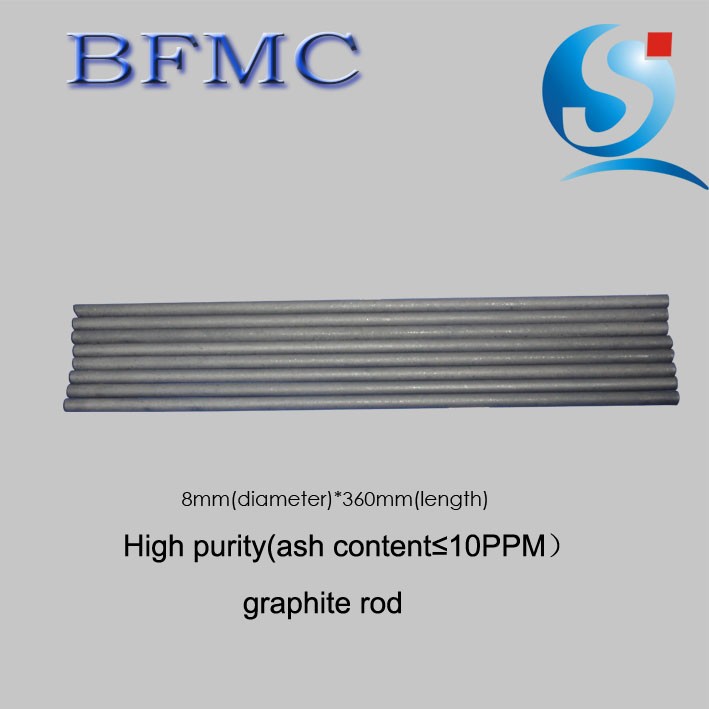

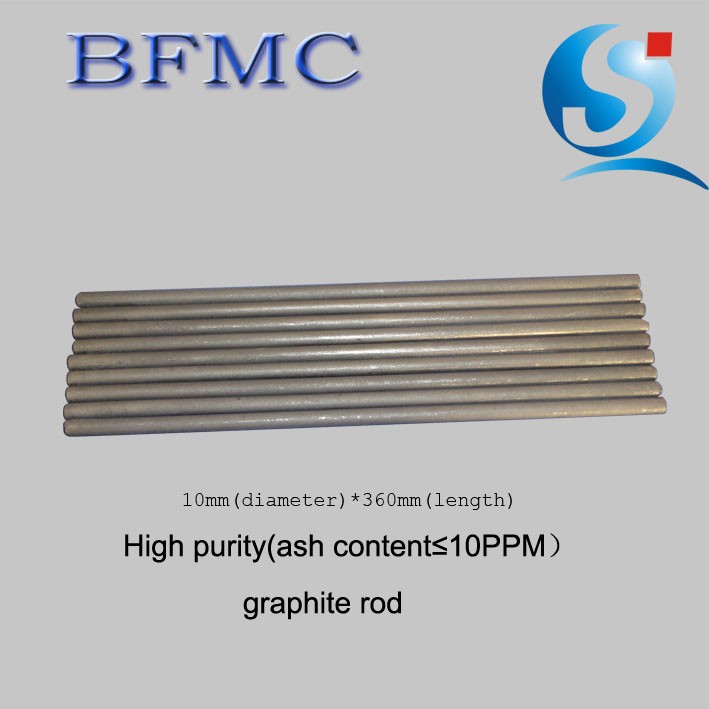

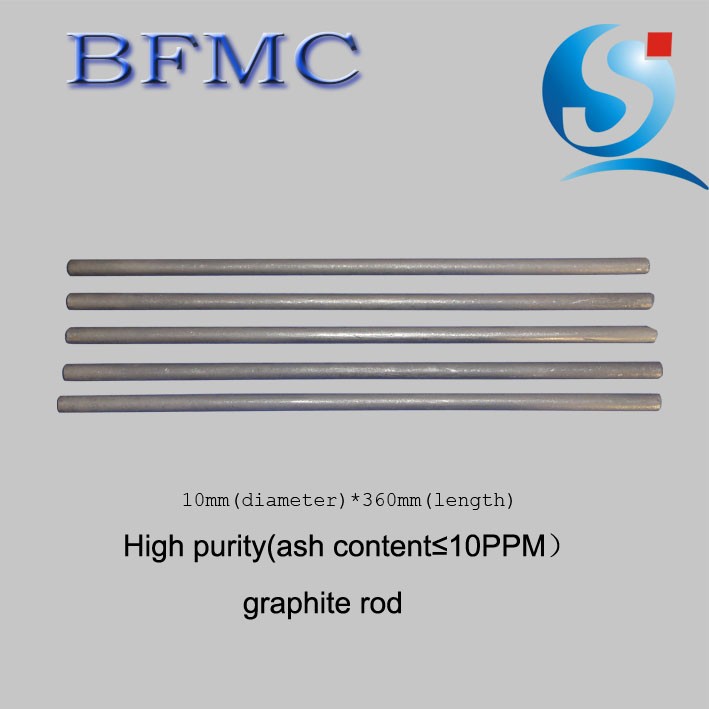

                            99.99% purity Graphite Spectral analysis rods

High purity, low ash content (only 7-10ppm)  High quality with Low price all in BFMC factory.

Applications

1.Crucibles,Electrodes, anodes, cathodes, resistors, whisking rods, special structural parts, etc.

2.Metallurgy, mechanical engineering,

3.Chemical & electrochemical industry, glass & ceramics and other industries.

Properties

Spectral analysis of graphite electrode with electrical conductivity, uniform, thermal shock resistance, high purity, have the replication and mechanical processing

1.Good self-lubricating;

2.Good resistance to chemical corrosion;

3.High thermal conductivity and thermal stability;

4.Adequate mechanical strength and impact resistance;

5.Easy to be machining processed; can be manufactured into a variety of geometrical products;

Typical Sizes

Diameter (mm) 6mm 8mm 10mm 11mm 12mm 13mm 15mm

Length (mm) 300-360mm

Specifications

Physical and chemical index
